Lighting Control Consoles - TL Series

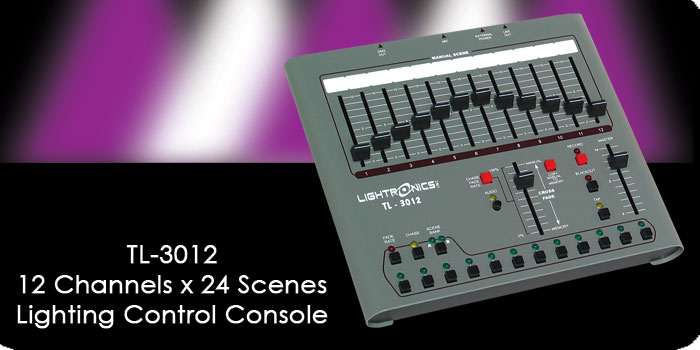

Lighting Control Consoles - TL Series TL3012

TL3012
Lighting Control Console
LED Compatible

The TL3012 is a compact, portable, digital dimmer controller. It is suitable for church, stage, theater, disco, night club, live performances and other event and artistic applications.

It provides 12 channels of LMX-128 (industry standard multiplex) control on a 3 wire cable. It can optionally provide DMX output. The TL3012 operates in a 2 scene manual mode or can provide 24 preset scenes organized in 2 banks of 12 scenes each. Twelve user defined chase patterns are always available. Scene fade rate, chase rate and chase fade rate are user controlled. Audio may also be used as a chase rate control. Other features of the TL3012 include: a master fader, momentary buttons, and blackout control. Scenes and chases stored in the unit are not lost when the unit is turned off.
Specifications
  • LED Compatible
  • 12 Channels
  • 24 Scenes
  • 12 Chases with 12 Steps each
  • Built in Microphone
  • LMX-128 Protocol
  • Optional DMX-512
  • Optional Wireless DMX (stand alone)
Options
  • DMX01 - DMX-512 output / 120V operation
  • DMX02 - DMX-512 output / 230V operation
Downloads
